High Level Discharge Depalletizer

Automatic, High Level Depalletizer

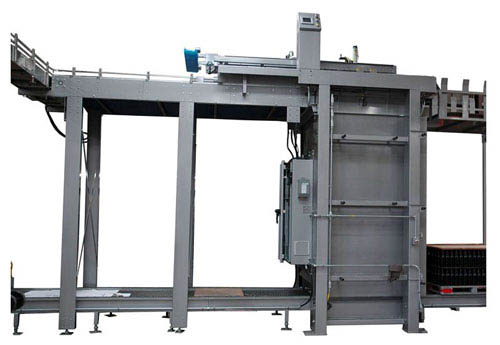

Uni-Pak Corp. designed and built a custom automatic depalletizer, pictured below, for the beverage industry. This complex, high-level discharge machine is used to bulk load cans or bottles made from various materials. Before this product was manufactured, we generated multiple CAD prints of the design. We also tested all fabricated machinery components using our buyer’s product, to ensure proper performance, and then shipped the order to our client’s facility in Longwood, Florida.

The final piece of equipment possessed a hoist, layer sweep, infeed pallet conveyor, operator platform, and accumulation table – among myriad other features. All machine components were designed and manufactured in-house. We also painted and powder coated this machine for a more durable, attractive finish. Our depalletizer met our client’s unique project requirements and exceeded all expectations for quality, functionality, and performance.

Project Highlights of this Custom Automatic, High-Level Depalletizer

Product Description

This Depalletizer is a high-level discharge machine.

Capabilities Applied / Processes

  • Design
    • Designed by Uni-Pak for the client
    • CAD Prints of Design Generated
    • All equipment is tested with buyers product before shipping
  • Finishing
    • Paint
    • Powder Coating

    Programming
    Start-Up

Material Used

Steel Frame (Welded)

Components

  • Hoist
    Layer Sweep
    Layer Sheet Grippers
    Layer Sheet Storage Bin
    Layer Sheet Removal
    Infeed Pallet Conveyor
  • Manual/Operating
    Automatic Operating Package
    Empty Pallet Stacker and Conveyor
    Operator Platform
    Accumulation Table
    Single Filer

Features

  • General:
    • Maximum Speed: To Suit Application
    • Typical Pallet Size: 44″x56″

    Hoist:

    • Lifted to accumulation table elevation of 138″
    • Heavy Welded Steel Leg Structure
    • 5HP Brake Motor w/ VFD Control
    • Full Length Side Shrouds
    • Automatic Height Control w/
      Photoeye Detection
    • Automatic Pallet Positioning Stop
    • NEMA 12 Wired Control Panel
      • Circuit Breaker
      • Fused Disconnect Switch
      • Transformer
      • Allen Bradley (1500) P.L.C.
        w/ Panel View 600 Plus
    • 110″ Maximum Pallet Load Height (Including Pallet)

    Layer Sweep:

    • Rear Sweep Pusher (Front Hold
      Back Optional)
    • ½ HP Motor w/ Rack & Pinion Drive
    • Adjustable Tapered Side Shrouds

    Layer Sheet Grippers:

    • Dual Set of Cam Activated Jaw
      Type Grippers
    • Grippers Mounted on Rear Stack Alignment Pusher

    Layer Sheet Storage Bin:

    • Layer Sheets Automatically Placed in Bin
    • Located Over Infeed Pallet Conveyor
    • Capable of 18″-20″ of Storage
  • Infeed Pallet Conveyor:
    • One 7′ Long Pallet Conveyor Standard (Optional Additional Staging Conveyor)
    • Two 5′ Long Conveyors
    • Each Conveyor Operates Independent of Each Other
    • Each Conveyor has Photoeye to Sense Pallets
    • 3/4 HP TEFC Drive Motor (Each Conveyor)

    Automatic Operating Package:

    • Automatically Indexes New Pallet
    • Lifts Pallets and Stops in Proper Position
    • Automatically Removes Picture Frame & Layer Sheets

    Empty Pallet Stacker:

    • Heavy Duty Scissor Lift
    • Empty Pallet Conveyor from Hoist to Stacker

    Operator Platform:

    • 20′ Long x 28″ Wide (Standard) Built to suit all applications
    • Provides Access to Single Filing, Layer Sheet Removal, and Sweeping off Pallet

    Accumulation Table:

    • 8 Long x 4′ Wide (Standard) Built to suit all applications
    • Rex Series 8505 Flush Grid Chain or Interlox 900 raised rib
    • 1HP Motor w/ Variable Frequency Controller

    Single Filer:

    • Designer to suit buyers floor plan application

In process testing performed

Test w/ Buyers Product Before Shipment

Industry for Use

Bulk Loads of Cans or Bottles (Glass, Plastic or Metal)

Delivery Location

Longwood, Florida

Product Name

8500 A 110 Depalletizer
