Custom Fabricated Stainless Steel Bottle Handling System for the Micro-Brewery Industry
This custom built bottle handling system was fabricated for a Micro-Brewery customer who wanted to increase their filling speed and reduce labor cost. As the system integrator for the project, Uni-Pak Corp. was responsible for the integration of all the equipment on the line. Included with the conveyor system we also provided a floor level depalletizer, a rinser, and a bi-directional accumulating table. Installation supervision was provided during the entire project.
The finished system was able to process 12oz. glass at 300 bottles per minute (PBM), 22oz. glass at 200 BPM, and 750ml glass at 75 BPM.
For more information on this product, or to find out what Uni-Pak can build for you, see the table below or contact Uni-Pak directly.

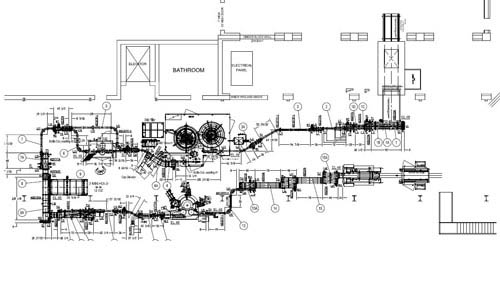

Bottle Handling System
Project Highlights of this Stainless Steel Bottle Handling System
- Product Description
- We manufactured this bottle handling system for a micro-brewery which included a depalletizer, bottle rinser, and conveying equipment.
- Capabilities Applied / Processes
- Design
Fabrication- Bending
- Cutting
- Forming
- Grinding
- Machining
- Polish
- Components:
-
- Bottle Rinser Model 515-III
Conveying Systems - Floor level Discharge Depalletizer
- Bottle Rinser Model 515-III
- Material Used
- Stainless Steel
UHMW
- Components
- Bottle Rinser:
- Tank:
- 16 Gauge Stainless Steel
- Hinged Covers Over Spray Area
- Snap Latches
- 1-1/4" NPT Drain Couplings
- Spray/Rinse Manifolds:
- ¾" Stainless Steel Pip w/ Internal Flex Flow Nozzles
- Includes Branch Lines w/ Fan Nozzles for Exterior Spray
- Pressure Regulator and Solenoid Shutoff Valve to Control Spray Pressure and Rinse Spray
- Electrical:
- Pre-Wired w/ On-Off-Auto Jog Control
- Utilizing Allen-Bradley Components
- NEMA 4X Panel
- Pre-Wired Low Level Infeed & High Level Discharge Control Switches w/ Adjustable Time Delays
- Drive:
- 1 HP VFH Controlled T.E.F.C. Motor
- Twist Assembly:
- Includes 1 Twist Assembly for Handling 12 Oz.
- Constructed of 10 Gauge Stainless Steel
- ½" Rod w/ Stainless Steel Rod Holders and Polymer Rod Clamps
- Hoist:
- Stationary Pallet w/ Layer Transport Platform
- Heavy Welded Steel Leg Structure
- #60 Pitch Chain for Platform w/ #80 Drive Pitch Chain
- 5 HP Brake Motor w/ Frequency Controller
- NEMA 12 Wired Control Panel Utilizing Allen Bradley Components
- Automatic Height Control w/Level arm
- Max Pallet Height: 110" Including Pallet
- Layer Sweep:
- Rear Sweep Pusher Bar Driven by ¾ HP Motor w/ Frequency Speed Control
- Layer Sheet Grippers:
- Dual Set of Cam Activated Jaw Type Grippers to Hold Layer
Sheet in Place While Bottles are Swept Off Sheet - Layer Sheet Storage:
- Layer Sheets Are Manually Removed at the Accumulation Table and Placed on Pallet Along w/ Picture Frame
- Speed:
- 12oz. Glass @ 300 BPM
- 22oz. Glass @ 200 BPM
- 750ml Glass @ 75 BPM
- 11 Gauge Stainless Steel Polished Side Body
- Replaceable UHMW Carrying and Mae West Return Wear Strips
- Industry for Use
- Micro-Brewery
- Turn Around Time
- 20 Weeks After Receipt of Order
- Shipping Location
- USA
- Product Name
- Micro-Brewery Bottle Handling System
